Zirconia layered (PFZ)
Zirconia layered crowns & bridges are types of dental restorations that combines the strength of zirconia with the aesthetic benefits of layered ceramics. Here are some key points about zirconia layered crowns & bridges.
These crowns & bridges have a zirconia core/framework that provides strength and durability, and a layer of porcelain or ceramic that mimics the natural translucency and color of teeth.
The layered ceramic allows for a more natural appearance, blending seamlessly with the surrounding teeth. This makes them an excellent choice for visible teeth, especially in the front of the mouth.
While slightly less strong than monolithic (solid) zirconia crowns & bridges, layered zirconia crowns & bridges still offer impressive durability and are suitable for both anterior and posterior restorations.
Zirconia is metal-free and biocompatible, reducing the risk of allergic reactions and making it a safe choice for most patients.
They are commonly used for crowns, bridges, and veneers, providing a balance of strength and aesthetics.
Overview

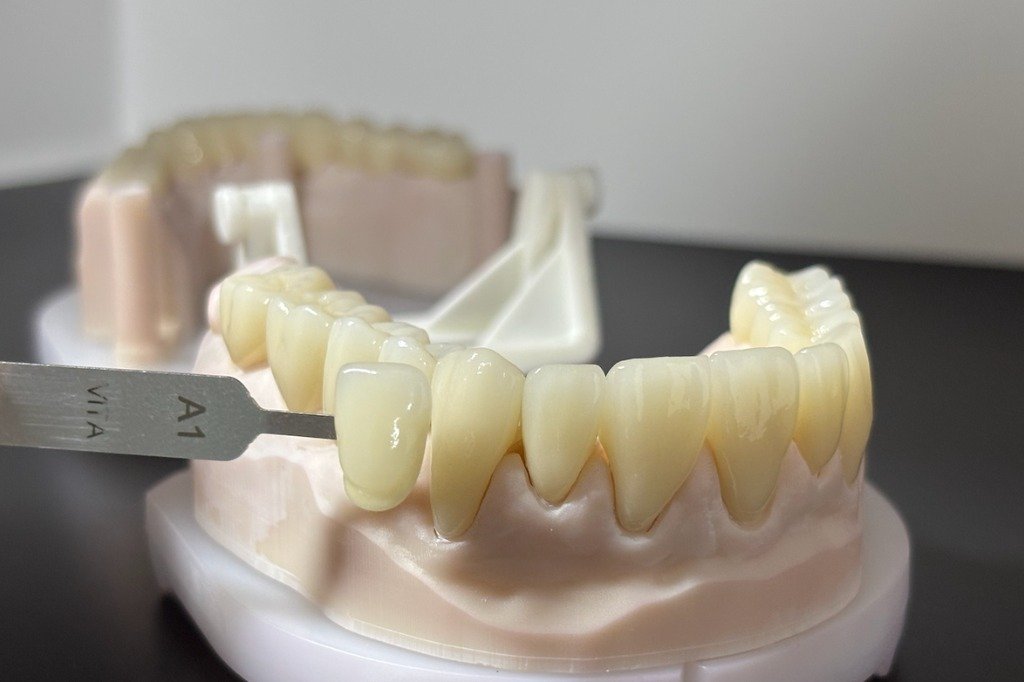

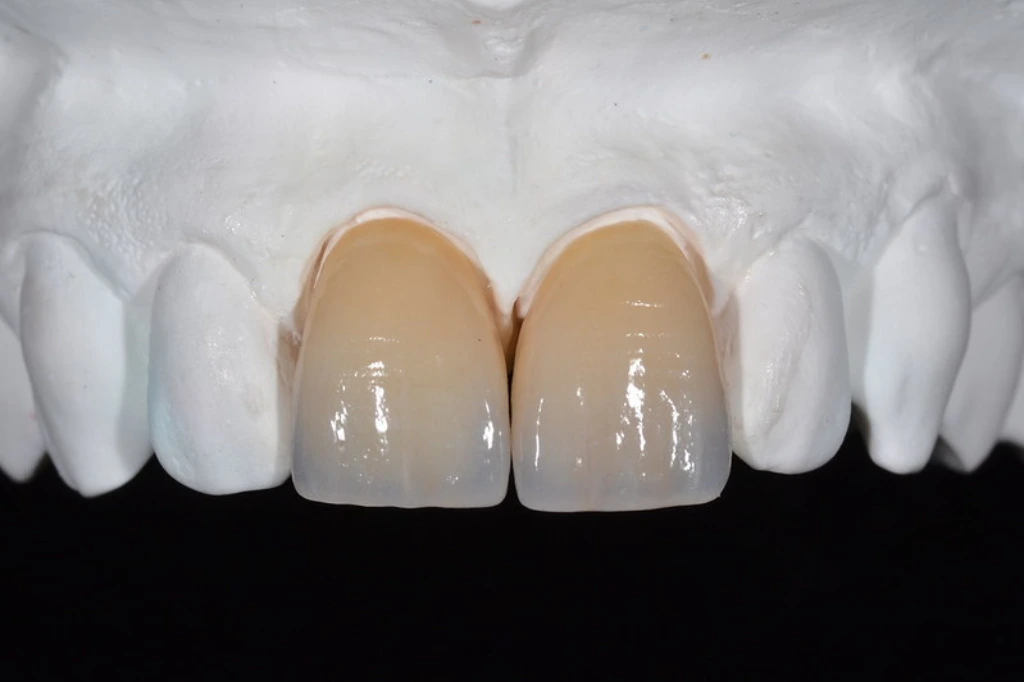

This beautifully layered porcelain restoration is built on a CAD/CAM milled high strength zirconia oxide coping infrastructure. Porcelain fused to zirconia has become the industry alternative to porcelain fused to metal coping by eliminating the gray metal show through.
- Cementation: Conventional cementation
- Warranty: Our warranty covers any defect in materials or workmanship for a period of five years from the date of completion.
- Turnaround time: 10 days in lab
Specifications
- Indications: Single unit to full arch esthetic restorations
- Ideal: or custom shade patients while matching natural teeth
- Material Composition: Monolithic core, Hand-layered porcelain
- Yttria Mol%: 3Y core
- Strength: 1300MPa Core Flexural Strength, ~80 to 120 Mpa porcelain over structure
- Available Shades: 16 Vita Classical shades and bleach shades
Preparation Guide
- 0.7mm-1.25mm reduction
- 360 Shoulder Margin Preferred or 120° chamfer
- Axial walls tapered 3˚ to 6˚degrees
01
02
03
Before & After
Fantastic outcome of 10 upper and 10 lower Zirconia Multi-layer Crowns.
Case Example #1
Lower single units 29-20 and upper single units 4-11 and 12 x 14 bridge all manufactured with Multi-layer Zirconia.
Case Example #2
Zirconia Multi-layer units on 5-12 uppers and 20-29 lowers correcting a class 3 bite to more of a class 2 bite.
Case Example #3
Fantastic outcome of 10 upper and 10 lower Zirconia Multi-layer Crowns.
Case Example #4
We manufactured all multi-layered zirconia crowns on upper units 5-13.
